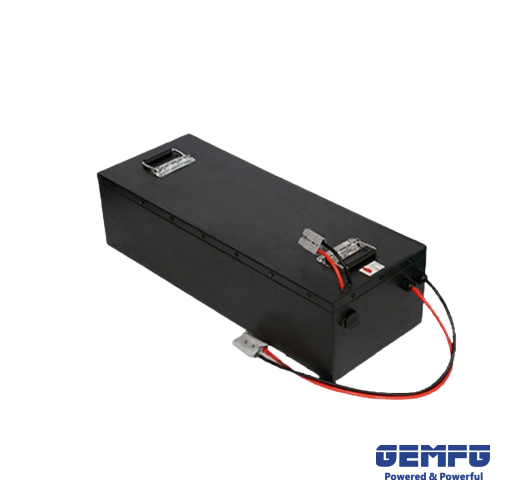

72V 100Ah Lithium Iron Phosphate Power Battery Pack For Four-wheel Low-speed Electric Vehicle


Item: GiB 72-100 (73.6V 100Ah)

 Dimensions: 280*347*521mm
 Weight：78Kg

GiB Series Lithium battery, as critical part of the most popular Energy Storage System (ESS), is widely using in industrial & commercial applications as well as household solar systems.

Super-safe lithium iron phosphate (LiFePO4) chemistry reducing the risk of explosion or combustion from high impact, over-charging or short circuitBattery Management System (BMS) controls the battery parameters to provide optimum safety, by protecting against over-charge and over-discharge.Intelligent BMS design balances the battery cells to an optimized performance.Higher-Capacity or Higher-Voltage available through parallel or serial connections. Robust ABS case with rugged-impact resistant.


Cycle life
GiB  Lithium batteries are for customized projects, available with below DOD cycles, subject to the project budget.

DOD80% = 2000 cycles
DOD80% = 3000 cycles
DOD80% = 4000 cycles
DOD80% = 6000 cycles

Safety/Fuse Protection.
Under the protection of built-in BMS, every single piece of GiB Lithium battery is extremely safe with current control. The smart BMS would protect your batteries from over-load discharge, over-charge, temperature exceed (low & high safety level).

Equalization of battery initial specification.
We could have equalized specifications of the batteries in series/parallel on OCV, IR, Capacity, Temp, etc...

Warming / heating panel available for low temperature application (-45ºC).
This is quite helpful when batteries are using in extreme temperature conditions, summer hot and winter cold.

Customized with digital display screen, Bluetooth, GPS, etc... more functional configuration could be developed.

Key Features:

Good low-temperature discharge performance,

Llong cycle life

Light battery weight,

High safety performance,

Green and environmentally friendly

Widely used in: AGV/RGV/MGV automatic transport vehicles, shuttle vehicles, fire fighting robots, electric forklifts, electric stackers, electric industrial platform vehicles, robots, low-speed electric vehicles, elderly scooters, four-wheel electric vehicles, communication equipment, medical equipment, solar street lights, home energy storage, energy storage power stations, etc.;
